Film/Sheet Cutting Machine

Laser Method

 5inch smartphone forms half/full cut

Laser Cutting Machine for Optical Film

Smartwatch forms 30cells nonstop processing

5inch smartphone forms 24cells nonstop processing

In-vehicle parts processing

Film Cutting Surface with minimum HAZ

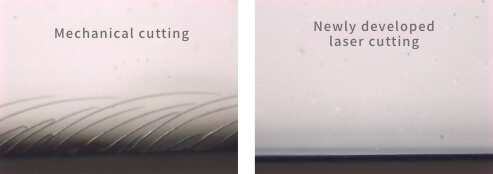

The cut surface of transparent conductive film with cracks suppressed

The cut surface of transparent conductive film with cracks suppressed

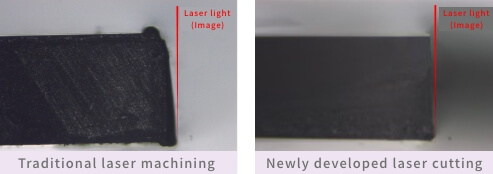

The cut edge of acrylic film with suppressed heat effect

The cut edge of acrylic film with suppressed heat effect

High-Speed and Stable Cut Quality

Not only straight lines but also complicated shapes, corners and curves can be processed at high speed and with high quality.

High-Speed and Stable Cut Quality

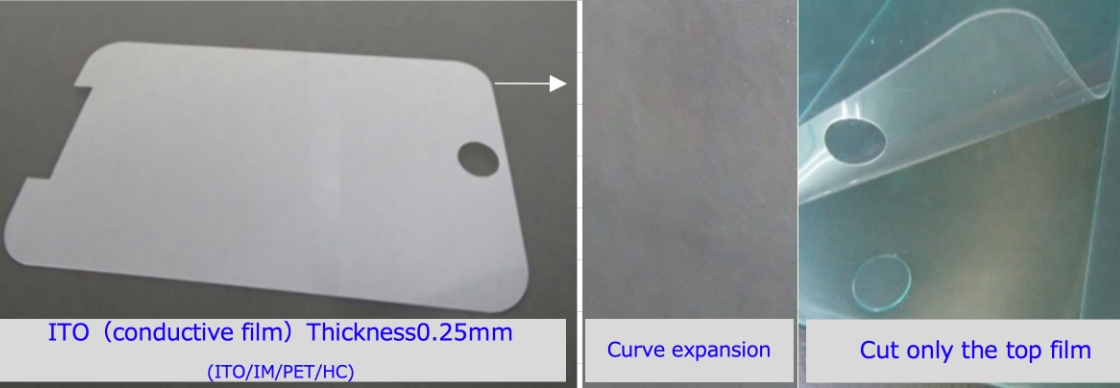

Takes 0.8sec for 5inch display size with a hole.
Standard spec. TLSM-301 works up to 500mm square.

Laser Processing Examples

The high-power CO2 laser enables a non-contact cutting of optical films, functional films, and packaging films. Because it requires no mold blade which is essential in a mechanical process, various shapes can be processed easily, and there is no need to manage consumables, resulting in significant reduced running costs.

PET Film

PET Film

COP Film

COP Film

Adhesive Film

Adhesive Film

Textile

Textile

Barrier Film (Half Cut)

Barrier Film (Half Cut)

Film for Packaging

Film for Packaging

PE/PET Package

PE/PET Package

Medical Film

Medical Film

Contact us

Proven Films

Resin Films

  • PET
    (polyethylene terephthalate)
  • PP (polypropylene)
  • PE (polyethylene)
  • COP (cyclic olefin polymer)
  • TAC (triacetyl cellulose)
  • Acrylic
  • Optical Films
  • High-Hardness Films
  • Adhesive Film
  • Packaging Film
  • Resin Films

Brittle Materials

  • Semiconductor Substrate
  • Ceramic Substrate

Use Applications

Mobile/Touch Panel

Mobile/Touch Panel

  • Transparent conductive film
Display

Display

  • Laminate film
Automobile

Automobile

  • Flexible display film
  • Atypical shape laser cutting
Apparel

Apparel

  • Atypical shape cutting of textile
Food Packaging

Food Packaging

  • Packaging film
Medicine

Medicine

  • Atypical shape cutting
High-functional Film

High-functional Film

  • Barrier film
Cosmetics

Cosmetics

  • Atypical shape sheet

The highly evaluated standard machine with high quality and processing capacity

TLSM-301

TLSM-301

By synchronously controlling the high-precision drive stage and Galvano scanner with our unique system, not only straight lines but also complicated shapes and corners can be processed at high speed and with high quality. Reading a drawing data allows a program change and switching in a small lot without advanced operations.

※左右にフリックしてご覧いただけます。
Model TLSM-301
Oscillator/Rated Power (Wavelength) RF induced CO2 Laser with 400W(10.6μm) or 350W(9.4μm)
Laser Scanning Method On-the-fly scanning with the Galvano scanner and the stage
Galvano Scanner Digital Galvano scanner
Stage Linear drive XY stage (Max.1000mm/s)
Position Alignment Aligned with image recognition
Work Dimension Up to 500×500 (vacuum suction on aluminum table)
Optical System Beam shaping system (option)/Fθ lens
Machine Dimension W2100mm×D2100×H2300mm ( without FFU )
※The above figures are standard dimensions. We will design according to the work dimensions.
