CO2 Laser Processing Unit
Laser Processing Unit (TLSU series)
What is the Laser Processing Unit?
It enables fine processing such as cutting and half-cutting of workpieces on the production line.
It is a easy-to-use packaged product that includes a laser oscillator, digital Galvano scanner, optical system parts, and control equipment.
It has been well received by many people in the mass production line for films and sheets.
Atypical shape full-cutting with digital Galvano scanner
Features
１.Ultra-high-speed Cutting

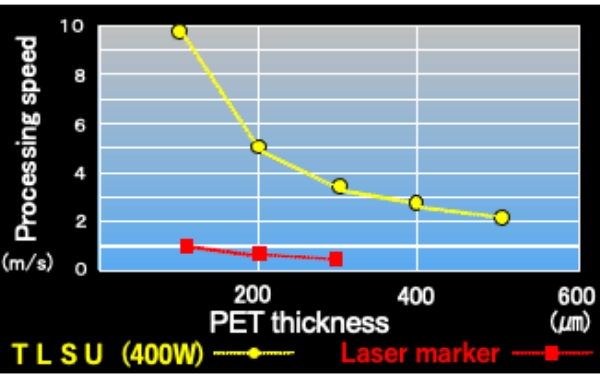

Cutting speed is 10 times faster than that of laser marker
Large laser output power significantly reduces a processing time.
２．High Position Accuracy
(High Precision Digital Galvano Scanner)
Position accuracy is 10 times accurate
By scanning the laser beam with a digital two-dimensional Galvano scanner,
it becomes possible to process with higher position accuracy than the laser marker.
３．Various/Thicker materials to cut
Processing of thick materials is possible
High-power laser enables cutting of materials and thick objects that are hard to process with the output of a laser marker.
4．Processed along with the Transport Speed
Shape correction that automatically follows the transport speed is possible
Capturing the transfer speed information from the encoder of the transfer device enables auto correction of the shape.
（separate option）
Processing Examples
Non-woven Fabric
Medical Film
Barrier Film (Half Cut)
Resin sheet drilling
Marking

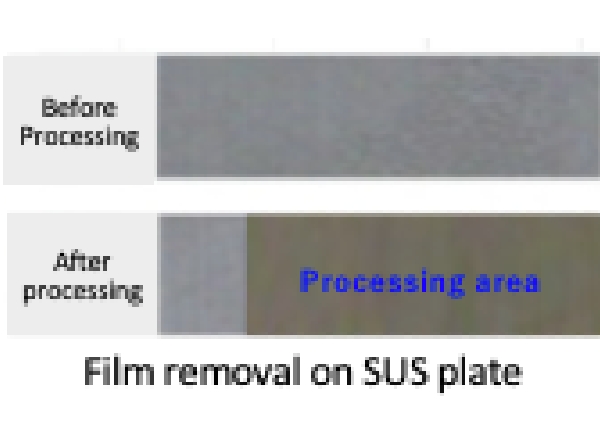

Membrane removal of metal surface
Contact us
Useful in familiar industries
Mobile/Touch Panel
- Transparent conductive film
- Laser slit of polarizing film
Display
- Laminate film
- Atypical shape laser cutting
Automobile
- Flexible display film
- Atypical shape cutting
Digital Appliance
- Atypical shape laser cutting
- Fine hole drilling
High-functional Film
- Atypical shape cutting of next-generation films
- Barrier film
Leaflet
New Laser Cutting Unit
TLSU series
The output area is up to 10 times that of general high-power laser markers, which enables a significant improvement in processing capacity. Galvano scanner with a digital encoder has realized a processing accuracy that cannot be obtained with laser markers. This is a laser unit that integrates oscillators, optical systems, scanners, and control-related items.
| Specifications | Optical System | Model TLSU-C100/-C200/-C350/-C400 |
|---|---|---|
| Laser | Laser Type | RF-induced CO2 Laser with a wavelength of 10.6μm or 9.4μm/Class4 |
| Oscillation Mode | Single mode M2<1.2 | |
| Rated Output | 100w～350w(9.4μm)/400w(10.6μm) | |
| Repeated Frequency | ～200kHz | |
| Cooling Method | Water Cooling(chiller capability <8.7kw with purified water) | |
| Galvano Scanner | Digital Galvano scanner | |
| Galvano Scanner |
Repeated Position Accuracy | 12μrad or less |
| Beam Scanning Speed | Max. 3000/sec or higher | |
| General Spec. | ||
| Input Voltage | Three phase AC210V±5% | |
| Power Consumption(during processing) | 25kW | |
| Environment Resistance |
Ambient Temperature in use | 20～30℃ |
| Ambient Humidity in use | 70%RH or less, non condensing | |
| Main Equipment Weight | 360kg | |
| Ancillary Equipment | Control Board, Chiller, Laser PS, Air 3-piece set panel | |
| Installation Condition | Indoor without toxic gas, water drop, oil, electromagnetic wave and vibration | |
